| Canopy Hoods in Fiberglass and Stainless Steel |
|
| Canopy hoods are designed to collect and exhaust corrosive vapors, heat, steam, and odors when mounted over areas with water baths, hot plates, or portable equipment. Standard color: Lab White. Wall Canopy Hoods (FRP or stainless steel, Includes wall mounting kit) (custom sizes available) |
|

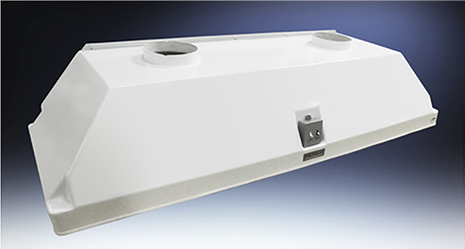

| Fiberglass Wall Canopy |
|

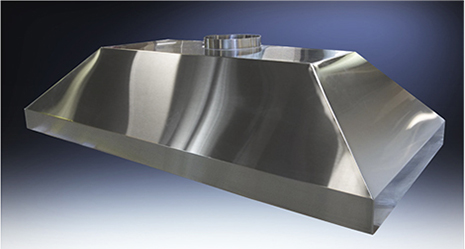

Stainless Steel Wall Canopy |
 |
 |
Fiberglass Canopy hoods are designed to collect and exhaust corrosive vapors, heat, steam, and odors when mounted over
areas with water baths, hot plates, or portable equipment.
Standard color: Lab White |
Stainless Steel Canopy hoods are constructed of type 304 stainless steel and designed to exhaust heat, steam when mounted over water baths, hot plates, or portable equipment. In sizes 36", 48", 72", 96" wide. |
 |
 |
| Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23000 |
Rear Wall Panel
(consult factory for details) |
Vapor Proof Light
& Switch Cat. No. 50035 |
Blower Switch 115V/15A
Cat. No. 50028 |
|
| Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23011 |
Rear Wall Panel
(consult factory for details) |
Vapor Proof Light
& Switch Cat. No. 50035 |
Blower Switch 115V/15A
Cat. No. 50028 |
|
| Width A |
36” |
48” |
72” |
96” |
Side Wall Panels |
Fiberglass
Cat. No. |
13030 |
13040 |
13060 |
13080 |
23000 |
Fiberglass
Rear Wall Panel |
23016 |
23026 |
23036 |
23046 |
-- |
| Diameter D |
6” |
8” |
10” |
(2) 10” |
-- |
|
| Width A |
36” |
48” |
72” |
96” |
Side Wall Panels |
| Stainless Steel Cat. No. |
13130 |
13140 |
13160 |
13180 |
23011 |
| Stainless Steel Rear Wall Panel |
23116 |
23126 |
23136 |
23146 |
-- |
| Diameter D |
6” |
8” |
10” |
(2) 10” |
-- |
|
| Fiberglass Island Canopy |
Stainless Steel Island Canopy |
 |
 |
 |
 |
Suspended Island Canopy Hood Mounting Kit Includes all components to secure to ceiling including 6’ long threaded rods.
Cat. No. 23001 |
Side Wall Panels
(fiberglass or stainless steel)
kit includes one wall panel
and hardware Cat. No. 23000 |
Vapor Proof Light
& Switch Cat. No. 50035 |
Rear Wall Panel
(consult chart for Cat.No.) |
|
| Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23011 |
Suspended Island Canopy Hood Mounting Kit Suspended Island Canopy Hood Mounting Kit Cat. No. 23001 |
| |
Blower Switch 115V/15A (blower not included) Cat. No. 50027-2 |
|
| Width A |
36” |
48” |
72” |
96” |
|
| Depth B |
24” |
30” |
30” |
30” |
Side Wall Panels |
Fiberglass
Cat. No. |
23030 |
23040 |
23060 |
23080 |
23000 |
| Fiberglass Rear Wall Panel |
23016 |
23026 |
23036 |
23046 |
-- |
| Diameter D |
6” |
8” |
10” |
(2) 10” |
-- |
|
| Width A |
36” |
48” |
72” |
96” |
|
| Depth B |
24” |
30” |
30” |
30” |
Side Wall Panels |
Stainless Steel
Cat. No. |
23130 |
23140 |
23160 |
23180 |
23011 |
| Stainless Steel Rear Wall Panel |
23116 |
23126 |
23136 |
23146 |
-- |
| Diameter D |
6” |
8” |
10” |
(2) 10” |
-- |
|
|
| Wall and Island Canopy Hood Baffles |
|
| Fiberglass Canopy Baffles Increase air flow around perimeter of hood to improve capture. Can be slotted to improve velocity directly above specific areas. |
| 36" Canopy Hood Baffle |
13035 |
 |
| 48" Canopy Hood Baffle |
13045 |
| 72" Canopy Hood Baffle |
13065 |
| 96" Canopy Hood Baffle |
13085 |
|
|
| Stainless Steel Canopy Baffles Increase air flow around perimeter of hood to improve capture. Can be slotted to improve velocity directly above specific areas. |
| 36" Canopy Hood Baffle |
13135 |
|
| 48" Canopy Hood Baffle |
13145 |
| 72" Canopy Hood Baffle |
13165 |
| 96" Canopy Hood Baffle |
13185 |
|
|
|
| Corner Canopy Hoods (Fiberglass) |
|
Corner Canopy (Stainless Steel) |
|
|
 |
 |
| Corner Canopy Hood & Wall Mounting Kit Includes all components to secure the canopy hood to a wall. Cat. No. 13000 |
Rear Wall Panel (2) required
Qty (1) 36" high X 45" wide
Cat. No. 23056 |
Corner Composite Resin Worksurface
Comes dished to contain spillage.
Cat. No. 13503 |
Side Wall Panels (fiberglass) 36" h X 25" w, kit includes one wall panel and hardware Cat. No. 23006 |
| Corner Table Features welded steel construction Cat. No. 13502 |
Blower Switch 115V/15A
Cat. No. 50028 |
|
| Corner Canopy Hood & Wall Mounting Kit Includes all components to secure the canopy hood to a wall. Cat. No. 13000 |
Side Wall Panels (fiberglass) 36" h X 25" w, kit includes one wall panel and hardware
Cat. No. 23004 |
Corner Composite Resin Worksurface
Comes dished to contain spillage.
Cat. No. 13503 |
Blower Switch 115V/15A
Cat. No. 50027-2 |
| Corner Table Features welded steel construction Cat. No. 13502 |
|
|
| Custom Fiberglass Canopy Hoods |
Custom Stainless Steel Canopy Hoods |
 |
 |
| Corner Canopy with (2) side walls, for access from both sides. |
Canopy with wall mounting brackets. |
 |
 |

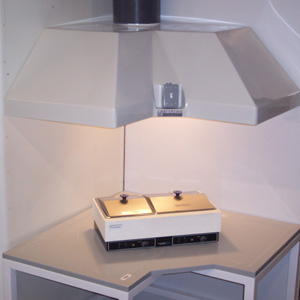

| Corner Canopy with light, side walls and corner table unit. |
Island Canopy with ducting and work table. |
|
 |
 |
| Canopy with (2) side walls, for access from both sides. |
Canopy with rear and side walls, worksurface, and adjustable table. |
 |
 |
| Canopy with Plexiglas sides, and hinged access panels. |
48" wall canopy, with light switch. |
|
