Fume Hood Sinks & Plumbing Services |
A complete line of sinks in epoxy resin, polypropylene, and stainless steel. We also offer a wide variety of plumbing accessories including neutralization tanks and pegboards. HEMCO welcomes the opportunity to quote your special applications. Additional sink sizes are available. Contact factory for more details. Conforms to ANSI Z21.15. |
| Fume Hood Laboratory Sinks |
 |
|
 |
|
 |
Epoxy Resin Sink Laboratory sink made of chemical and corrosion resistant epoxy resin. Drop-in sink. color: black. Please specify desired location. Includes sink stopper & drain outlet. |
|
Polypropylene Sink Laboratory sink made of chemical resistant heavy duty polypropylene.
Drop-in sink. color: black. Please specify
desired location. Includes drain outlet. |
|
Stainless Steel Sink made of one-piece, type 304 stainless steel & polished to a No. 4 satin finish. Drop-in sink. Underside is sound deadened to reduce drumming. Specify location. Includes drain outlet. |
|
Size |
Cat. No. |
1 |
9” x 6” x 6” deep |
42021 |
2 |
16” x 12” x 8” deep |
42022 |
3 |
18” x 15” x 11” deep |
42026 |
4 |
24” x 16” x 8” deep |
42027 |
|
|
|
|
|
Size |
Cat. No. |
1 |
12” x 8” x 8” deep |
72041 |
2 |
14” x 10” x 6” deep |
72043 |
3 |
18” x 15” x 12” deep |
72045 |
4 |
28” x 20” x 9” deep |
72048 |
|
|
|
Size |
Cat. No. |
1 |
12” x 12” x 7.5” deep |
42031 |
2 |
16” x 16” x 7.5” deep |
42032 |
3 |
16” x 22” x 7.5” deep |
42033 |
4 |
16” x 28” x 7.5” deep |
42034 |
|
|
| Fume Hood Cupsinks |
 |
|
 |
|
 |
|
 |
Cupsink 6” Diameter
Polypropylene cupsink with
1-1/2” IPS tailpiece and outlet strainer.
Cat. No. 40118
|
|
Oval Cupsink
Drop-in oval cupsink in polypropylene.
1-1/2” IPS tailpiece includes strainer.
| 3” x 6” |
40119 |
| 3” x 9” |
40121 |
|
|
Oval Wall Cupsink 6” x 3”
Cupsink is made of polypropylene with
1-1/2” IPS tailpiece and outlet strainer. Optional on FM fume hoods
Cat. No. 40419
|
|
Round Cupsink 9” Diameter
Cupsink is made of epoxy with 1-1/2” IPS tailpiece and outlet strainer.
Cat. No. 40519 |
|
| Pegboard, P-Traps & Fume Hood Neutralization Tanks |
 |
|
 |
Jar P-Trap
P-trap includes adjustable
tailpiece and removable jar.
1-1/2” IPS tail piece.
Cat. No. 40220
|
|
P-Trap
P-trap is made of polypropylene
with 1-1/2” IPS tailpiece.
Cat. No. 40120
|
 |
Phenolic Resin Pegboards For drying and storage of lab ware. Pegboard in 1” thick and includes a stainless steel drip trough to collect run-off. |
Width |
Height |
No. of Pegs |
Cat. No. |
| 24” |
30” |
39 |
72430 |
| 30” |
30” |
46 |
73030 |
| 30” |
36” |
60 |
73036 |
|
|
Neutralization Tanks Molded of one-piece,chemical resistant polyolefin, neutralization
tanks are designed to dilute and neutralize laboratory waste and concentrated
corrosives. Limestone is utilized as the medium for neutralizing the hazardous waste.
Note: limestone is not included with tank. |
 |
 |
 |
|
Description |
Cat. No. |
1 |
5 gallon tank (5.5” wide x 14” deep x 20” high with 1-1/2” IPS inlet/outlet) Note: 5 gallon tank requires (1) bag of limestone. |
40222 |
| 2 |
15 gallon tank (17.25” dia. x 15.5” H with 1-1/2” IPS inlet/outlet) Note: 15 gallon tank requires (3) bags of limestone. |
40322 |
3 |
Limestone is utilized as the medium for neutralizing the hazardous waste. (50 lb bag) Note: Limestone is not included with tank.
|
40223 |
|
|
|
| Fire Extinguishers |
Foremost: fume hood fires must be extinguished promptly, failure to do so could result in loss of life and valuable equipment & processes. In case of a fire inside of a fume hood, 1. Lower the sash into the closed position. 2. Pull the manual front mount discharge cable to activate the fire extinguisher. 3. Shut off the fume hood blower on the fume hood, and any remote exhaust blowers that are connected. 4. Shut off any utility services that could feed a fire. Fire extinguisher activation occurs at 165° Fahrenheit. These are recommendations, contact your laboratory safety officer for guidelines. |
| |
 |
|

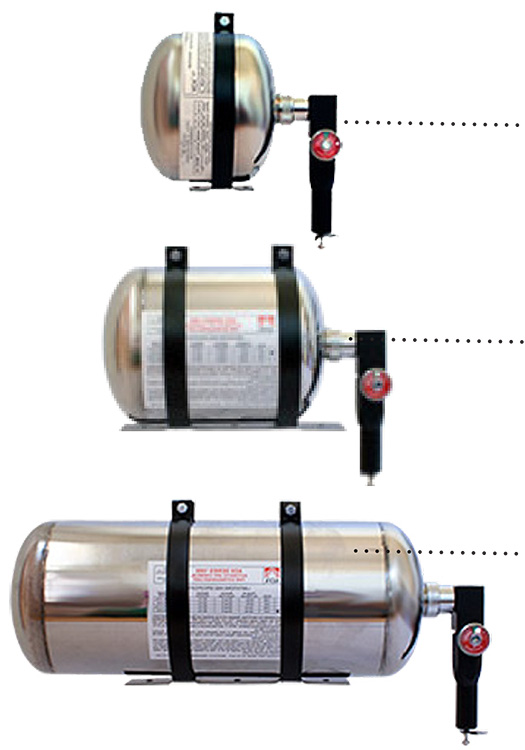

ABC Dry Chemical Fire Extinguishers
1. Fire Extinguisher with automatic activation at 165° Fahrenheit.
• With dry chemical Monoammonium Phosphate, 10 lb...............Cat No. 53030
2.. Fire Extinguisher with automatic activation at 165° Fahrenheit.
• With Halon, up to 50 Cubic feet..................................................Cat No. 53050
• With Halon, 125 Cubic feet.........................................................Cat No. 53125
• Manual Discharge Cable Kit........................................................Cat No. 53007
Manual discharge cable kit Note: Larger hoods may require (2) or more extinguishers, based on
interior cubic dimensions.
|
| |
|
|
| |
|
|
|
