| Vented Safety Enclosures (VSE) |
 |
 |
 |
| Vented Safety Enclosure (VSE) |
SSE |
Custom VSE & Accessories |
| Available in 2', 3' and 4' widths. This workstation is designed for sample weighing, pipetting procedures, histology & student stations. |
Versatile vented enclosure is ideal for student workstations and critical weighing procedures involving hazardous powders and liquids. |
Work surfaces, C Frame Tables, Cabinets, Ducting and other accessories available. |
|
| Vented Safety Enclosures (VSE) |
|
| Available in 24", 36" and 48" widths. This versatile workstation is designed for sample weighing, pipetting procedures, histology and student stations. Enclosures are user safe, energy efficient and cost effective. |
 |
| The VSE (Ventilated Safety Enclosure) is offered in 24”, 36” and 48” widths to accommodate an analytical balance and other small-scale lab processes. |
| |
| Constructed with clear anodized aluminum and 1/4” thick clear polycarbonate on all sides. |
| |
| Efficient air flow design with airfoil and bypass, directs contaminates to baffled exhaust thereby providing superior air flow and containment performance for user protection. |
| |
| The ergonomic design provides added user comfort. |
| |
| The viewing sash is angled 15 degrees for ease of viewing comfort with 8” reach in opening height. Sash swings up to provide full frontal access. |
|

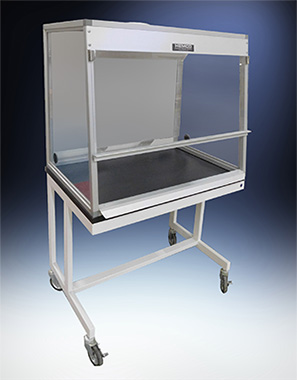

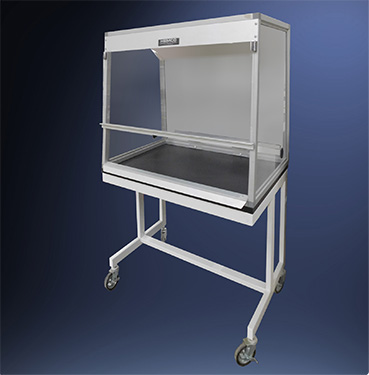

| VSE Cat. No. 84800 shown above with optional Mobile table, and Phenolic Worksurface |
|
| Descriptions: |
Catalog Number |
| |
24” W |
36”W |
48”W |
| VSE Balance Enclosure 24” Depth X 22” height |
82400 |
83600 |
84800 |
| Phenolic Work surface |
12418 |
13618 |
14818 |
| C-Frame Table 36” Height |
50203 |
50303 |
50403 |
Mobile Table
|
-- |
50303 |
50418 |
| Flex Ducting 6” Dia. X 12’ long |
80052 |
80052 |
80052 |
| Exhaust Fan for remote mount 115 volts, 60Hz |
51051 |
51052 |
51053 |
|
 |
|

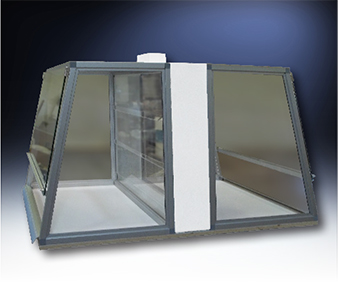

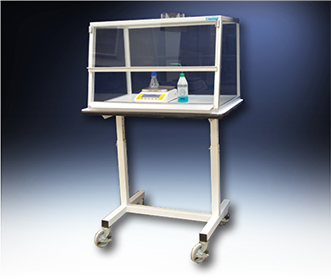

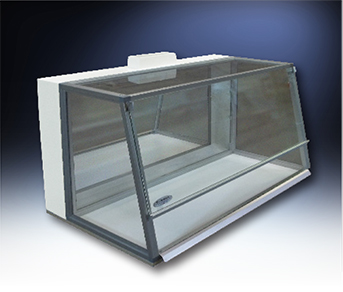

| (SSE) Enclosures |
 |
|
| Versatile vented enclosure is ideal for student workstations and critical weighing procedures involving hazardous powders and liquids. |
|
 |
| Sizes Available in 30”, 36” and 48” widths to accommodate all analytical balances. |
| |
| Efficient Air Flow Design with air sent through plenum exhaust thereby providing superior air flow and containment performance for user protection. |
| |
Ergonomic Design provides the user with added comfort.
|
Chemical Resistant Metal Framing with 1/4” thick clear tempered safety glass side panels and viewing sash.
|
| |
| Viewing Sash is angled 15 degrees for ease of viewing comfort with 8” reach in opening height. Sash swings up to provide 20” of access opening. 2 service ports are located in lower right and left rear wall. |
| |
| Sash swings up to provide 20” of access opening. 2 service ports are located in lower right and left rear wall. |
| |
Available in either double or single sided balance enclosure SSE units to meet your specifications.
|
| |
| Double sided unit allows viewing from both sides. |
|
|
| Descriptions: |
Catalog Number |
| Width |
30” |
36” |
48” |
| SSE Balance Enclosure 30” high X 30” deep |
83010 |
83610 |
84810 |
| Phenolic Worksurface 1” thick X 30” deep |
12418 |
13618 |
14818 |
| |
|
|
|
| SSE Double Sided Enclosure 30” high X 55” deep |
83020 |
83620 |
84820 |
| Phenolic Worksurface 1” thick X 55” deep |
12428 |
13628 |
14828 |
|
 |
|
