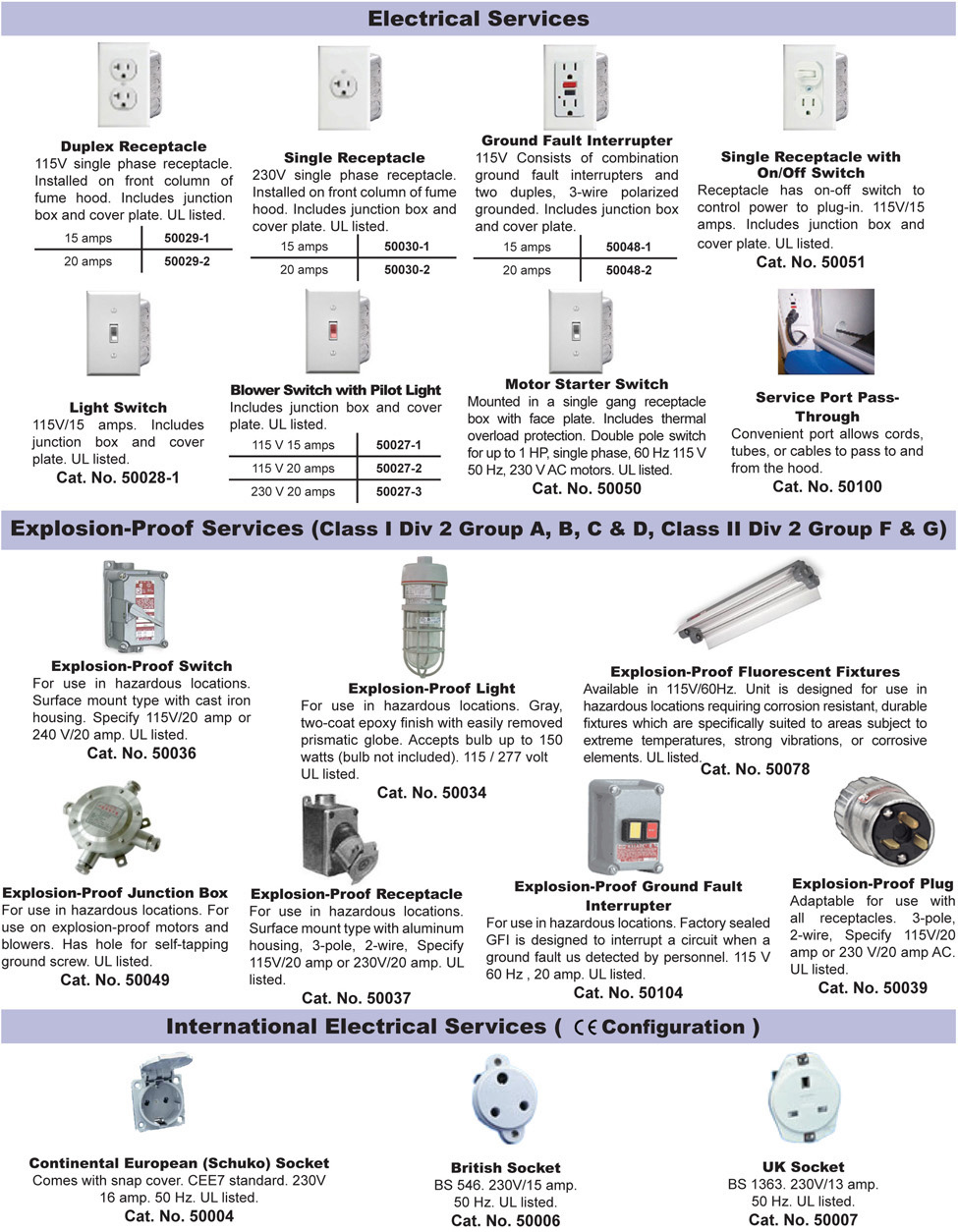

Fume Hood Electrical Services
Electrical services are UL, CSA & CE listed. They come factory installed, wired to a single point junction box when ordered with fume hoods. Services must be wired to comply with local codes.
Fume Hood Electrical Services
Duplex Receptacle
115V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed..
amps Cat. No.
15 amps 50029-1
20 amps 50029-2
Single Receptacle
230V single phase receptacle.
Installed on front column of
fume hood. Includes junction
box and cover plate. UL listed.
amps Cat. No.
15 amps 50030-1
20 amps 50030-2
GFI Duplex
115V consists of combination ground
fault interrupters, 3-wire polarized
grounded. Includes junction box &
cover plate. UL listed.
amps Cat. No.
15 amps 50048-1
20 amps 50048-2
Data Port
Cat 6, 10 gigabit Ethernet, (2) port fixture. Installed on front column. Cabling not included.
Cat No. 50053
Service Port Pass-Through
Light Switch
(standard)
115V/15 amps. Includes junction
box and cover plate. UL listed.
Cat. No. 50028-1		 Blower Switch with Pilot Light
Includes junction box and cover
plate. UL listed.
volts/amps Cat. No.
115 V 15 amps 50027-1
230 V 20 amps 50027-3
Blower Switch
Mounted in a single gang receptacle box with face plate. Factory mounted not wired. Includes thermal overload protection. Double pole switch for up to
1 HP, single phase, 60 Hz 115V 50 Hz, 230V AC motors. UL listed.
Cat. No. 50050		 Service Port
Pass-Through
Convenient port allows
cords, tubes, or cables
to pass to and from
the hood.
Cat. No. 50100
Fume Hood Vapor Proof Light Fixtures
Vapor-Proof Light Vapor-Proof Light Factory installed. Accepts bulb up to 150w, 115V, UL listed, (bulb not included) Standard on CE, Canopy, Universal
and EcoFlow hoods.
Cat. No. 50035		 Vapor Proof LED Light FixtureVapor Proof LED Light Fixture Fluorescent LightingFluorescent Lighting
LED fixture with stainless steel reflector, (2) tube, 115V, UL listed. (LEDs included) LED has a 50,000 hour average life span. Standard on SE and LE Fume hoods.
24 inch......................................... Cat. No. 51124
36 inch..........................................Cat. No. 51136
48 inch......................................... Cat. No. 51148		 T-5 fixture with stainless steel reflector, (2) tube, 115V/230V tubes changed from the outside. (fluorescent tubes are included) UL listed.
Optional on SE and LE Fume Hoods.
24 inch..................................... Cat. No. 50224
36 inch......................................Cat. No. 50236
48 inch..................................... Cat. No. 50248
Fume Hood Explosion Light Fixtures and Proof Services
Explosion-Proof Light Std Class I Div IIt Explosion-Proof Light Std Class I Div II
For use in hazardous locations. Gray, two-coat epoxy finish with easily removed prismatic globe. Factory mounted, not wired. Accepts compact fluorescent or LED, (bulb not included) 115V /230V UL listed. Class I Div II Group A, B,C,D Class II Div II Group F& G
Cat. No. 50034		 Explosion-Proof Fixture Class I Div I Explosion-Proof Fixture Class I Div I
For use in hazardous locations.
Gray, two coat epoxy finish with easily removed prismatic globe. Accepts compact fluorescent or LED, (bulb not included)
115V/230V. Factory mounted, not wired. UL listed. Class I
Div I Group C, D, Class II Div I
Group E, F & G
Cat. No. 50038		 Explosion-Proof Fluorescent Lighting Class I Div I
Explosion-Proof Fluorescent Lighting
Class I Div I
fixture is (2) tube, 115V/230V with tubes
changed from the outside. UL listed.
(fluorescent tubes are included)
24 inch........................ Cat. No. 50077
48 inch........................ Cat. No. 50078
Explosion-Proof Switch Class I Div I or II Explosion-Proof Switch
Class I Div I or II
For use in hazardous locations. Surface mount type with cast aluminum housing. Specify 115V/20 amp or 230V/20 amp.
UL listed.
Cat. No. 50036		 Explosion-Proof Plug Class I Div I or II Explosion-Proof Plug
Class I Div I or II Adaptable for use with all receptacles. 3-pole, 2-wire, Specify 115V/20 amp or 230V/20 amp AC. Not installed at factory.
UL listed.
Cat. No. 50039		 Explosion-Proof Receptacle Class I Div I or II Explosion-Proof
Receptacle
Class I Div I or II
For use in hazardous locations. Surface mount type with aluminum housing, 3-pole, 2-wire,
Specify 115V/20 amp or 230V/20 amp. Not installed at factory.
UL listed..
Cat. No. 50037		 Explosion-Proof Ground Fault Interrupter Class I Div I or II Explosion-Proof Ground
Fault Interrupter
Class I Div I or II
For use in hazardous locations. Factory
sealed GFI is designed
to interrupt a circuit
when a ground fault
is detected. 115V 60 Hz,
20 amp. Not installed at factory. UL listed.
Cat. No. 50104
Fume Hood International Electrical Services
European Socket Continental European Socket with cover cap Type : CEE7
color: gray
Rating 250V/16 amp, with box and cover,
installed at factory
Cat. No. 50004		 South Africa Socket Indian / South Africa
Socket ISA
Type : BS546
color: white
Rating 250V/15 amp, with box
and cover,
installed at factory.
Cat. No. 50006		 UK Ireland Socket United Kingdom / Ireland
Shuttered Socket
Type : BS1363
color: white
Rating 250V/13 amp, with box and cover, installed at factory.
Cat. No. 50007		 Panel Mount Socket Continental European Panel Mount Socket
Type : CEE7
color: white
Rating 250V/15 amp,
with box and cover,
installed at factory.
Cat. No. 50008

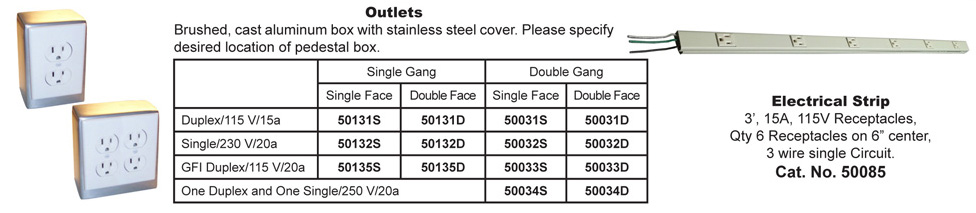

Laboratory Receptacles
Outlets

Outlets Brushed cast aluminum box with stainless steel cover.
Please specify desired location of pedestal box.

Electrical Chase
  Single Gang Double Gang
Single Face Double Face Single Face Double Face
Duplex/115 V/15a 50131S 50131D 50031S 50031D
Single/230 V/20a 50132S 50132D 50032S 50032D
GFI Duplex/115 V/20a 50135S 50135D 50033S 50033D
One Duplex and One Single/250 V/20a 50034S 50034D

Electrical & Data Supply Chase
Anodized aluminum raceway can
be supplied with a variety of electrical
or data services.• Specify length,
type of plug, quantity
of plugs, type of data outlet.
Cat No. 50086
