SE AireStream Laboratory Fume Hoods |
|
| High efficiency, full duty fume hood in 48”, 60”, 72” and 96” widths. UniFlow SE AireStream Fume Hoods are designed for energy savings & maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. A constant volume low flow hood with Vector Baffle System directs the air through the fume chamber to the bell shaped exhaust collar with minimal turbulence. Requires Remote Exhaust Blower. Fume hood is U.L.1805 classified. |
|
 |
| UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, for superior durability and long life. Interior fume chamber one piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. 5 year warranty. |
| |
| UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. |
| |
| Access Panel removable to access ducting connections, plumbing & electrical services from a single point electrical box, 115/60Hz AC operation. |
| |
| Vapor Proof LED light fixture polished stainless steel reflectors, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed |
| |
| 28" Vertical Sash Height provides ease of access for apparatus set-up in fume chamber. Sash is perfectly counter balanced, 3/16 tempered safety glass, coated stainless steel cable with stainless steel pulley assembly. Framed in nonmetallic PVC framing, track, and aerodynamic sash lift for ease of movement and air flow efficiency. |
| |
| Full 35" Viewing Height interior fume chamber with 24" or 30" interior reach in depth. With 54" interior working height, allowing for tall apparatus and distillation grid. |
| |
| Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the Vector AireStream baffle system. |
| |
| Air Flow Monitor interior fume chamber with 24" or 30" interior reach in depth. With 54" interior working height, allowing for tall apparatus and distillation grid. Cat. No. 51403 |
| |
 |
| Low Resistance Exhaust Collar Engineered to reduce exhaust air flow, static pressure and improve air flow volume & efficiency. |
10" Diameter Exhaust Collar.................................Cat. No. 80101
12" Diameter Exhaust Collar.................................Cat. No. 80121 |
|
SE AireStream Hood Cat. No. 45621 shown with Vector Air Flow Slots and optional epoxy resin worksurface, acid storage cabinet, & fixtures. |
 |
HORIZONTAL SLIDING
SASHES Sash stops available. Max opening is 50%, (4) panels on (2) tracks, conveniently lift
out for equipment set-up
or cleaning.
|
COMBINATION VERTICAL MOVING FRAME with HORIZONTAL SLIDING SASHESOffers the advantages of both sash types. Horizontal openings offer energy savings while vertical option allows full access to the fume chamber. Frame is of type 304 stainless steel. |
| Click for Maintenance Manual |
|
|
|
SE AireStream Laboratory Fume Hoods |
|
|
| UniFlow SE AirStream Specifications & Ordering Info |
(A) Width |
 |
48" |
60" |
72" |
96" |
| 1. UniFlow SE AireStream CAV Fume Hood:Air Bypass low flow, constant air volume hood. Dual wall unitized construction, all non-metallic corrosion and fire resistant composite fiberglass construction. Vector AireStream Baffle System and transition bell exhaust connection. Molded one-piece fume chamber with white glass-smooth surface with all coved corners. Vertical sash to be counter balanced 3/16” tempered safety glass with chemical resistant non-metallic PVC framing, track, and aerodynamic sash lift. A sash stop is installed at the 1/2 open position. Vapor proof LED light fixture and control switch are wired to a single point junction box, 115/60Hz. AC All electrical components are U.L.listed. Fume hood is U.L.1805 classified |
(B) Depth |
|
 |
45421 |
45521 |
45621 |
45821 |
| 30" |
| 36" |
45431 |
45531 |
45631 |
45831 |
| 2. UniFlow SE AireStream VAV Fume Hood:Same as #1 above except equipped with variable air volume VAV restricted by-pass feature in place of CAV by-pass feature. Ducting must be connected to optional VAV exhaust system controls. |
30" |
45422 |
45522 |
45622 |
45822 |
| 36" |
45432 |
45532 |
45632 |
45832 |
| 3. UniFlow SE AireStream Fume Hood with Explosion-Proof Light:Same as #1 above except, equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115/230V, 50/60Hz U.L. listed fixture is installed but not wired. Must be field wired to comply with codes. Optional explosion proof switches, receptacles. |
30" |
45423 |
45523 |
45623 |
45823 |
| 36" |
45433 |
45533 |
45633 |
45833 |
| 4. UniFlow SE AireStream Fume Hood:Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC Optional international electrical configuration, electrical switches, other receptacles. |
30" |
45424 |
45524 |
45624 |
45824 |
| 36" |
45434 |
45534 |
45634 |
45834 |
5. Horizontal Sliding Sash Option: Add suffix to number above
|
|
45HS-4 |
45HS-5 |
45HS-6 |
45HS-8 |
6. Combination Sliding Sash Option: Add suffix to number above
|
|
45CS-4 |
45CS-5 |
45CS-6 |
45CS-8 |
|
|
|
SE AireStream Laboratory Fume Hoods |
|
 |
|
|
|
LE AireStream Laboratory Fume Hoods |
|
| High efficiency, full duty fume hood in 36”, 48”, 60”, 72” and 96” widths. UniFlow LE AireStream Fume Hoods are low flow constant volume for energy savings & maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. The Vector Baffle System directs the air through the fume chamber to the bell shaped exhaust collar with minimum turbulence. Requires Remote Exhaust Blower. Fume hood is U.L.1805 classified. |
|
 |
| |
UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, superior durability and long life. Interior fume chamber one-piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. Includes 5 year warranty. |
| |
UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. |
| |
Access Panel removable to access ducting connections, plumbing & electrical services from a single point electrical box, 115/60Hz AC operation. |
| |
Vapor Proof LED light fixture polished stainless steel reflectors, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed |
| |
28” Vertical Sash Height provides ease of access for apparatus set-up in fume chamber. Sash is perfectly counter balanced, 3/16 tempered safety glass, coated stainless steel cable with stainless steel pulley assembly. Framed in nonmetallic PVC framing, track, and aerodynamic sash lift for ease of movement & air flow efficiency. Standard Sash. |
| |
32" Viewing Height interior fume chamber with 24" or 30" interior reach in depth. With 54" interior working height, allowing for tall apparatus and distillation grid. |
| |
Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the Vector AireStream Baffle System. |
| |
Air Flow Monitor continuously monitors face velocity air flow. Meets ANSI and OSHA requirements. Optional equipment, Cat. No. 51403 |
|
UniFlow LE AireStream Hood Cat. No. 35461,shown with Vector Air Flow Slots and optional epoxy resin worksurface, base cabinet and fixtures
|
STANDARD HORIZONTAL
SASHES The standard sash for HEMCO fume hoods. Sash stops available. Max opening is 50%, (4) panels on (2) tracks, conveniently lift out for equipment set-up or cleaning. |
COMBINATION VERTICAL
MOVING FRAME with HORIZONTAL SLIDING SASHES Horizontal openings offer energy savings while vertical option allows full access to the fume chamber. Frame is of type 304 stainless steel. |
|
 |
| Click for Maintenance Manual |
|
|
LE AireStream Laboratory Fume Hoods |
|
 |

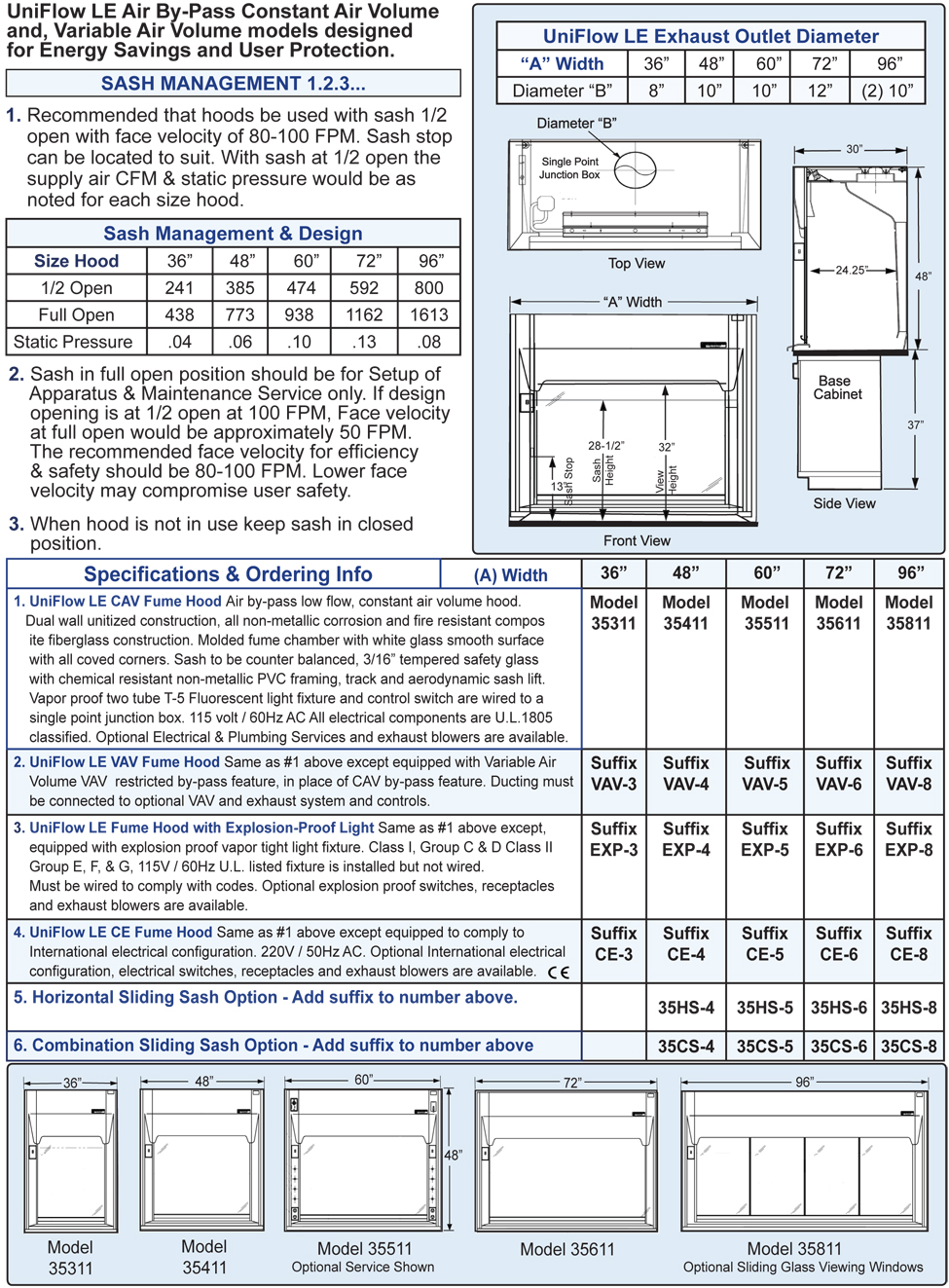

| UniFlow LE AireStream Specifications & Ordering Info |
(A) Width |
36" |
48" |
60" |
72" |
96" |
| 1. UniFlow LE AireStream CAV Fume Hood:Air Bypass low flow, constant air volume hood. Dual wall unitized construction, all non-metallic corrosion and fire resistant composite fiberglass construction. Molded one-piece fume chamber with white glass-smooth surface with all coved corners. Vector AireStream Baffle System and bell shaped exhaust collar. Sash to be counterbalanced, 3/16” tempered safety glass with chemical resistant non-metallic PVC framing, track & aerodynamic sash lift. A sash stop is installed at the 1/2 open position. Vapor proof LED light fixture and control switch are wired to a single point junction box, 115/60Hz, AC. All electrical components are U.L. listed. Optional electrical services. Fume hood is U.L.1805 classified. |
35361 |
35461 |
35561 |
35661 |
35861 |
| 2. UniFlow LE AireStream VAV Fume Hood: Same as #1 above except equipped with Variable Air Volume VAV restricted bypass feature, in place of CAV bypass feature. Ducting must be connected to optional VAV exhaust system & controls. |
35362 |
35462 |
35562 |
35662 |
35862 |
| 3. UniFlow LE AireStream Fume Hood with Explosion-Proof Light:Same as #1 above except, equipped with explosion proof vapor tight light fixture. Class I, Div II,Group A B C& D. Class II Div II Group F & G 115/230V, 50/60Hz, U.L. listed fixture is installed but not wired. Must be field wired to comply with codes. Optional explosion proof electrical services. |
35363 |
35463 |
35563 |
35663 |
35863 |
4. UniFlow LE AireStream Fume Hood International Configuration: Same as #1 above except equipped to comply with optional CE international electrical configuration. 220V/50Hz AC. Electrical services, exhaust blowers available.
|
35364 |
35464 |
35564 |
35664 |
35864 |
5. Horizontal Sliding Sash Option: Add suffix to number above
|
NA |
35HS-4 |
35HS-5 |
35HS-6 |
35HS-8 |
| 6. Combination Sliding Sash Option: Add suffix to number above |
NA |
35CS-4 |
35CS-5 |
35CS-6 |
35CS-8 |
|
|
LE AireStream Laboratory Fume Hoods |
|
 |
|
|
CE AireStream Laboratory Fume Hoods |
|
| Full duty fume hoods in space and energy saving sizes of 30”, 36”, 48”, & 72” widths. UniFlow CE AireStream models are low flow constant volume fume hoods that require no VAV controls, no motorized baffles, no costly auxiliary air system and no special integral supply fans. These units can save 50% or more in costly exhaust volume typically required to operate a conventional fume hood. Requires Remote Exhaust Blower. Fume hood is U.L.1805 classified. |
|
 |
| |
UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance, superior durability and long life. Interior fume chamber one-piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. Includes 5 year warranty. |
| |
UniFlow AireStream Vector Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet. |
| |
Access Panel removable to access ducting connections, plumbing & electrical services from a single point electrical box, 115/60Hz AC operation. |
| |
Vapor Proof light fixture with glass globe, and light switch on left column, all factory installed. Energy efficient 15W, 50/60Hz, 100-277VAC. 5 Year warranty. U.L. Listed |
| |
23" Vertical Sash Height provides ease of access for apparatus set-up in fume chamber. Sash is perfectly counter balanced, 3/16 tempered safety glass, coated stainless steel cable with stainless steel pulley assembly. Framed in non-metallic PVC framing, track, and aerodynamic sash lift for ease of movement and air flow efficiency. |
| |
27" Viewing Height interior fume chamber with 19" interior reach in depth. 35" interior working height, allowing for tall apparatus and distillation grid. |
| |
Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the Vector AireStream Baffle System. |
| |
Air Flow Monitor (Optional equipment) continuously monitors face velocity air flow, meets ANSI and OSHA requirements.
Cat. No. 51403 |
|
| UniFlow CE AireStream Hood Cat. No. 13641 shown with Vector Air Flow Slots and optional base cabinet, worksurface and fixtures |
|
 |
|
|
CE AireStream Laboratory Fume Hoods |
|
 |

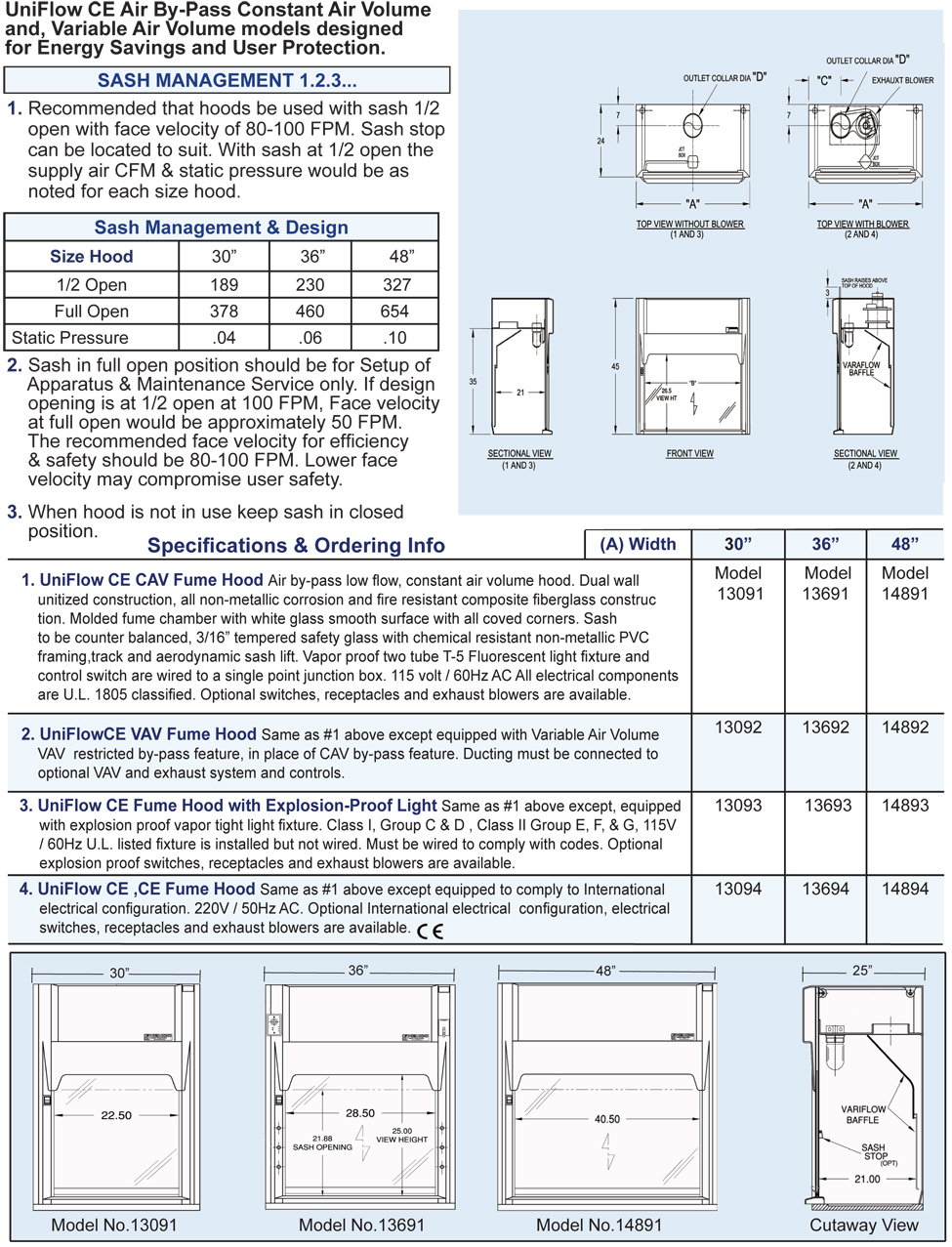

| UniFlow CE Fume Hood Specifications & Ordering Info |
(A) Width |
30" |
36" |
48" |
72" |
| 1. UniFlow CE AireStream CAV Hood with Vapor Proof Light:The unitized superstructure features a molded seamless fume chamber with all corners coved. Manufactured of flame retardant chemical resistant composite resin using a minimum of metallic parts. Viewing sash is constructed of 3/16” clear tempered safety glass with frame and track fabricated of chemical resistant PVC. Equipped with Vector AireStream Baffle System to efficiently direct air through the fume chamber. Baffle is easily removed for cleaning. Vapor proof light fixture with column mounted light switch. All electrical services are U.L. & C.S.A listed and factory wired to a single point junction box,115/60Hz, Hood is shipped completely assembled. Optional electrical services. |
Model 13041 |
Model 13641 |
Model 14841 |
Model 17241 |
| 2. UniFlow CE AireStream VAV Fume Hood: Same as #1 above except equipped with Variable Air Volume VAV restricted bypass feature, in place of CAV bypass feature. Ducting must be connected to optional VAV exhaust system & controls. |
13045 |
13645 |
14845 |
17245 |
| 3. UniFlow CE AireStream Hood with Explosion-Proof Light:Same as #1 above except, equipped with explosion proof vapor tight light fixture. Class I, Div II Group A,B,C & D. Class II Div II Group F, & G,115/230V, 50/60Hz, U.L. listed fixture is installed but not wired. Must be field wired to comply with codes. Optional explosion proof switches, receptacles, and exhaust blowers are available. |
13043 |
13643 |
14843 |
17243 |
4. UniFlow CE AireStream Fume Hood International Configuration: Same as #1 above
except equipped to comply with optional CE international electrical configuration. 220V/50Hz AC.
Electrical services, exhaust blowers available.
|
13046 |
13646 |
14846 |
17246 |
| 5. Composite Resin Worksurface:1.25” thick, color: gray, dished, factory installed |
13017 |
13617 |
14817 |
17217 |
| 6. Phenolic Resin Worksurface:1.25” thick, color: black, dished |
13028 |
13628 |
14828 |
17228 |
| 7. Stainless Steel Worksurface:1.25” thick, color: black, dished |
13016 |
13616 |
14816 |
17216 |
|
|
