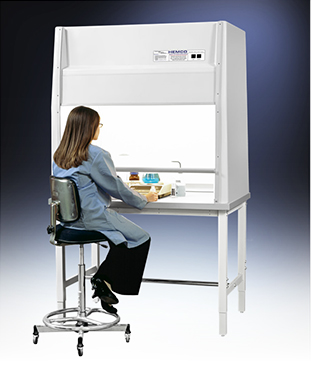

Clean Aire II Ductless Fume Hoods |
Clean Aire II Fume Hoods are a Class DH1 ductless hood workstation. Activated Carbon Filtration for fumes, odors, non-hazardous chemical vapors. See your
MSDS data sheet for specific details of each chemical used.
• Small quantities of solvents, acids, and annoying odors are absorbed into the
carbon filter, that recirculates air back into the room thus avoiding the need for
installation and lowering energy costs.
• Self contained ductless hood unit, equipped with integral carbon filter, vapor
proof light, vertical sash and controls.
• Completely molded of fire retardant fiberglass.
• Equipped with integral exhaust blower and carbon filter. Carbon filters are
removed from inside of fume hood.
• Does not require duct or venting to the outside.
• Recirculates filtered air back into the laboratory.
• Shipped completely assembled and equipped, ready for operation. |
.jpg) |
.jpg) |
Clean Aire II |
Dimension |
24” |
30” |
36” |
48” |
Width “A” |
24” |
30” |
36” |
48” |
Width ”B” |
18” |
24” |
30” |
42” |
Sash Height “C” |
20” |
20” |
20” |
20” |
Height “D” |
36” |
36” |
36” |
36” |
Depth “E” |
23” |
23” |
23” |
23” |
|
|
Clean Aire II Ductless Fume Hoods |
Size |
24” |
30” |
36” |
48” |
Hood Cat. No. |
92025 |
93025 |
90325 |
90425 |
Phenolic Worksurface Cat. No. |
92028 |
93028 |
90328 |
90428 |
Replacement Filter Cat. No. |
52004 (1) required |
52004 (1) required |
52004 (2) required |
52004 (2) required |
|
|
 |
Optional Accessories |
|
|
|
|
Base Table |
Constructed of coated welded steel 48" wide X 30" deep. Adjustable height from 30" to 36". Table includes a foot rail, and leveler feet. |
54821 |
Plastic Laminate Worksurface |
48" X 30" |
20428 |
Replacement Carbon Filter |
Carton of 2 |
52004 |
|
|
|

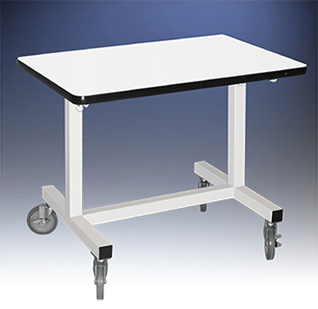

Mobile Tables |
The HEMCO Mobile Table is designed to support Demonstration Hoods, VSE Enclosures and light weight laboratory equipment. |
 |
|
• Mobile Table: Sizes from 38”, & 48” wide
• Adjustable Height & Fixed Height Models Available
• 30” Standard Height
• Constructed of 1” X 2”, 16 gauge rectangular tubing, with
welded construction
• (4) Wheels 250 Lbs capacity casters (2) casters are lockable
• Work Surface is Chemical Resistant, Plastic Laminate with
Matte finish,
and Black perimeter edge bumper
• Powder Coated finish resists chemicals Color: Pearl White |
Specifications: |
HEMCO Mobile table is designed to hold:
• MicroFlow I Workstations
• MicroFlow II Workstations
• MicroFlow III Workstations
• Demonstration Hoods
• VSE Vented Safety Enclosures
• Table Top Fume Hoods |
|
 |

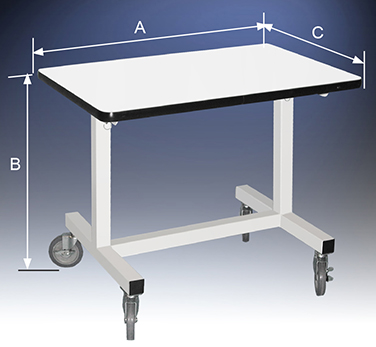

Cat. No. |
Width
"A" |
Height
"B" |
Depth
"C" |
50315 Fixed Height |
38” |
30” |
24” |
50415 Fixed Height |
48” |
30” |
30” |
70415 Fixed Height |
|
|
|
50403 Adjustable Height |
48” |
36” |
24” |
70318 Adjustable Height |
36” |
28.5”- 38.5” |
24” |
70418 Adjustable Height |
48" |
28.5”- 38.5” |
30” |
|
|
|
|
