  New UL UniFlow Fume Hoods
|
Laboratory Safety Services |
| Laboratory Emergency Shower Decontamination Booths |

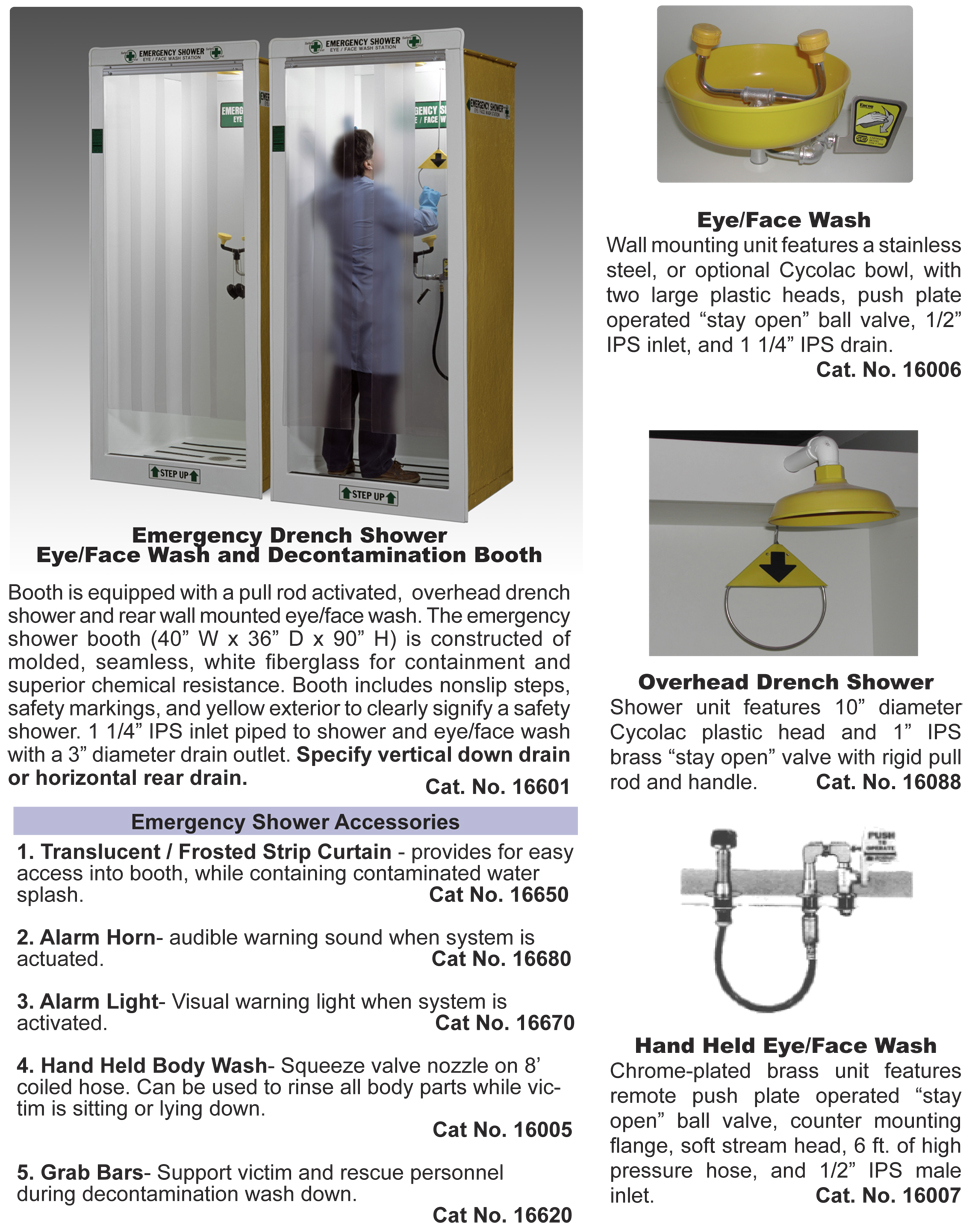

Emergency Shower Decontamination Booths, strip curtains, alarm horns, alarm lights, Grab bars, Eye/Face Wash, Overhead Drench
Shower, Hand Held Eye/Face Wash. |
Drench Shower Delivers full body shower and eye-wash while protecting the laboratory from water and chemical damage. Overhead drench shower is pull rod activated for immediate response and ease of use. |
|
 |
| |
Eye / Face Wash rear wall mounted eye and face wash, features a yellow ABS plastic bowl, with two large plastic heads, and a push plate operated "stay open" ball valve.
|
| |
Stainless Steel Grab bars Support victim and rescue
personnel during decontamination wash down.
|
| |
Plumbing is provided, for installation by
local certified plumber. Plumbed to single
point 1-1/4” IPT connection. Tempered
warm water supply connection 20 GPM
water supply is required.
|
| |
Raised fiberglass deck with self draining containment basin, and 2” diameter drain outlet located on either the bottom or rear of unit. |
| |
Industrial Applications Emergency Drench Shower Booth, pull rod activated overhead drench shower & rear
wall mounted eye/face wash. Cat No. 16601 |
| |
| Laboratory Applications Emergency Drench Shower Booth, same specs as above except with finished side panels. Cat No. 16604 |
| |
 |
1. Combination Alarm Light & Horn - Audible warning sounds when system is activated by flow switch. Top mounted visual warning light when system is activated. 12 volt Cat No. 16680 |
| OSHA & ANSI state that emergency shower is to be located within 10 seconds walking time from the hazardous site location |
|
 |
Hand Held Face & Body Wash
Mounted on the front side-wall of the fume hood. Includes 8’ hose and
surface escutcheon.
3/8” NPT. barrier free.
Cat. No. 93966 |
|
|
| Laboratory Safety Services |
|

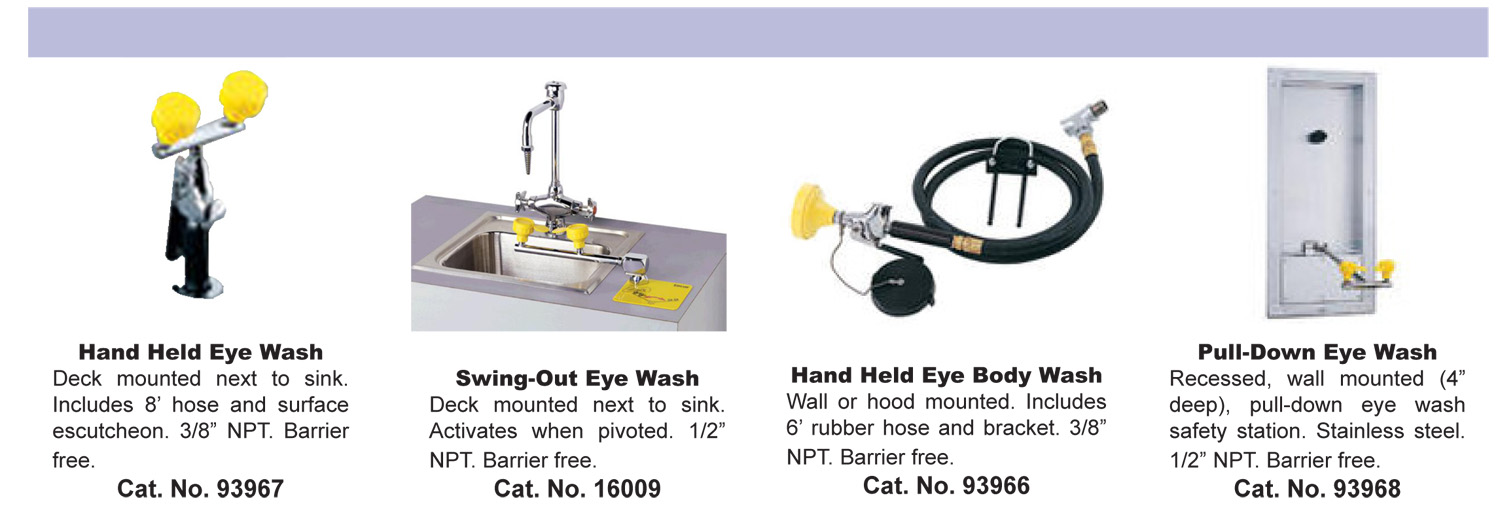

| Hand Held Eyewash, Hand Held Body Wash, Swing out Eye Wash, Pull Down Eye Wash |
|
 |
 |
 |
 |
|
Hand Held Eye Wash
Deck mounted next to sink.
Includes 8’ hose and surface
escutcheon. 3/8” NPT. Barrier free.
Cat. No. 93967 |
Hand Held Body Wash - squeeze valve nozzle on 8’ coiled hose and bracket. Can be used to rinse all body parts while victim is sitting or lying down. Wall or hood mounted, 3/8 NPT, barrier free.
Cat. No. 16005 |
Swing-Out Eye Wash
Deck mounted next to sink. Activates
when pivoted. 1/2” NPT. Barrier free.
Cat. No. 16009 |
Pull-Down Eye Wash
Recessed, wall mounted
(4” deep), pull-down eye wash
safety station. Stainless steel.
1/2” NPT. Barrier free.
Cat. No. 93968 |
|
|

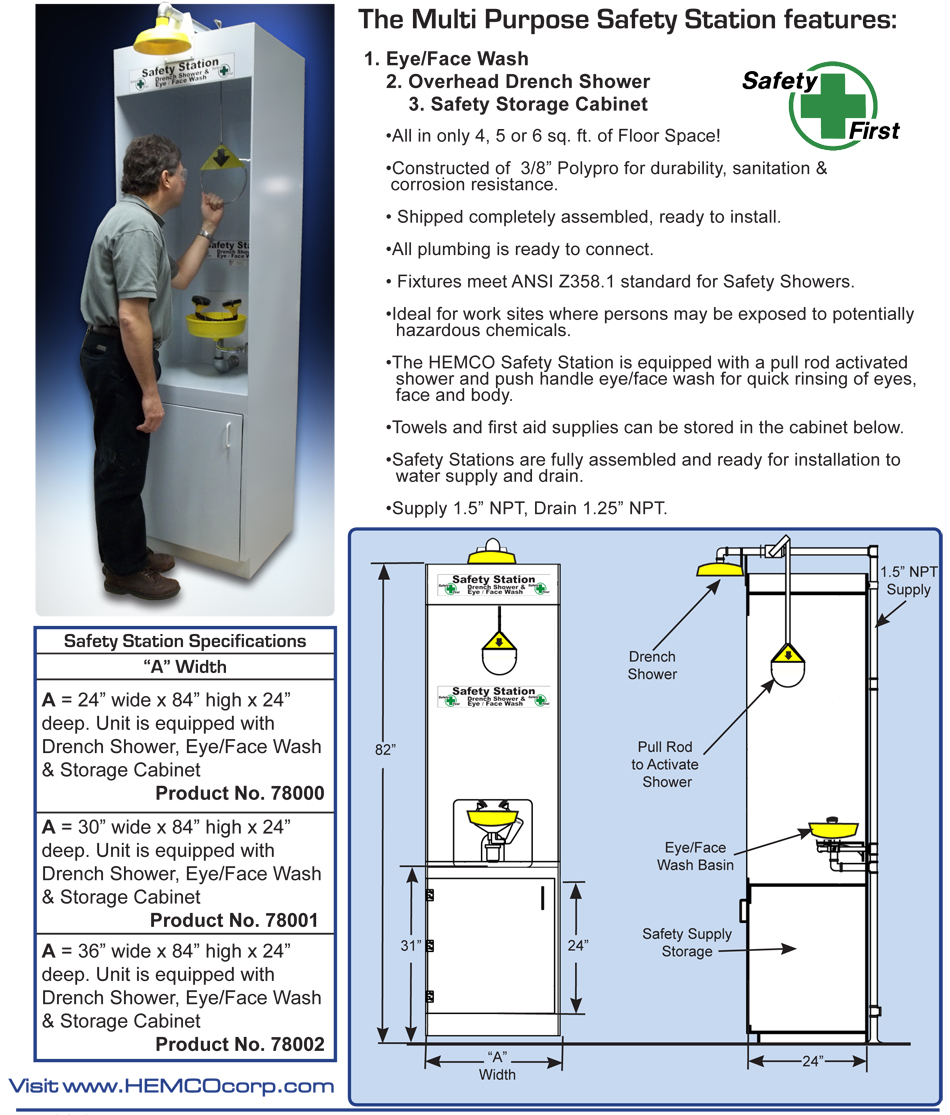

| Multi Purpose Safety Stations |
 |
|
| Constructed of 3/4" Polypro for durability, sanitation & corrosion resistance. Equipped with a pull rod activated shower and push handle eye / face wash for quick rinsing of eyes, face and body |
 |
| |
1. Eye/Face Wash
2. Overhead Drench Shower
3. Safety Storage Cabinet |
| |
| •All in only 5 or 6 sq. ft. of Floor Space! |
| |
| •Constructed of 3/8” Polypro for durability, sanitation & corrosion resistance. |
| |
| • Shipped completely assembled, ready to install. |
| |
| •All plumbing is ready to connect. |
| |
| • Fixtures meet ANSI Z358.1 standard for Safety Showers. |
| |
| •Ideal for work sites where persons may be exposed to potentially hazardous chemicals. |
| |
| •The HEMCO Safety Station is equipped with a pull rod activated shower and push handle eye/face wash for quick rinsing of eyes, face and body. |
| |
| •Towels and first aid supplies can be stored in the cabinet below. |
| |
| •Safety Stations are fully assembled and ready for installation to water supply & drain. |
| |
| •Supply 1.5” NPT, Drain 1.25” NPT. |
|
 |
| Safety Station Specifications |
“A” Width |
A = 30” wide x 84” high x 24” deep. Unit is equipped with Drench Shower, Eye/Face Wash &
Storage Cabinet
Cat. No. 78001
|
A = 36” wide x 84” high x 24” deep. Unit is equipped with Drench Shower, Eye/Face Wash &
Storage Cabinet
Cat. No. 78002
|
|
|
|
