iso ul New UL UniFlow Fume Hoods
safety first
Safety Equipment magnifying glass
shower safety station drench shower safety equip'
Emergency Showers Safety Stations Drench Showers Laboratory Safety Services
Emergency Shower Decontamination Booth, alarm Horns, grab bars, Eye Face Wash Safety Station, pull rod activated shower & push handle eye/face wash sizes 30", & 36" wide Drench Shower includes pull rod activated shower and push handle eye/face wash Hand held eye wash, Swing out eye wash, hand held eye body wash, pull down eye wash

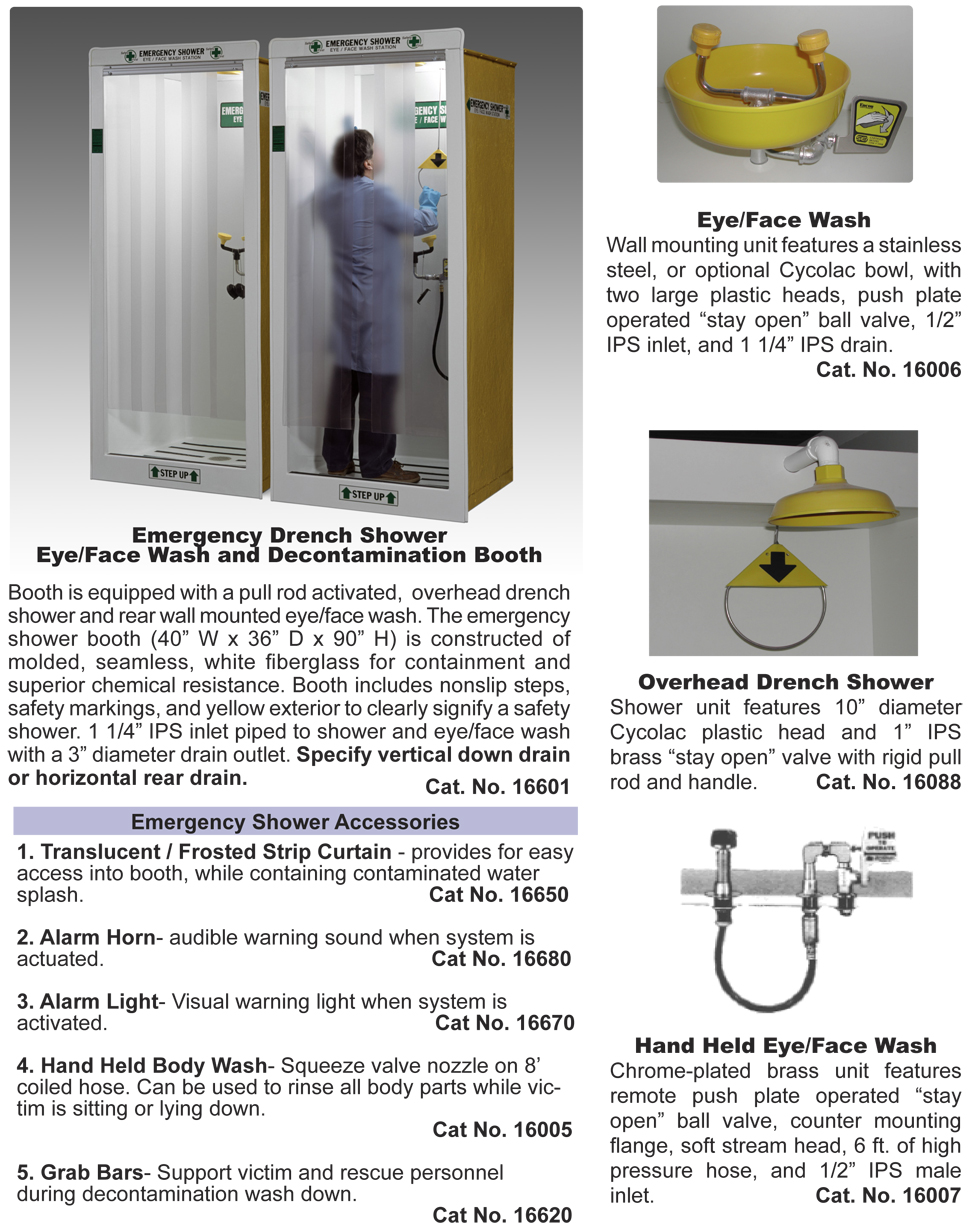

Laboratory Emergency Shower Decontamination Booth
Emergency Shower Decontamination Booths, strip curtains, alarm horns, alarm lights, grab bars, eye/face wash, overhead drench
shower, hand held eye/face wash.

Drench Shower Delivers full body shower and eye-wash while protecting the laboratory from water and chemical damage. Overhead drench shower is pull rod activated for immediate response and ease of use.


OSHA & ANSI state that emergency shower is to be located within 10 seconds walking time from the hazardous site location


Eye / Face Wash rear wall mounted eye and face wash, features a yellow ABS plastic bowl, with two large plastic heads, and a push plate operated "stay open" ball valve.



Stainless Steel Grab bars Support victim and rescue personnel during decontamination wash down.



Plumbing is provided, for installation by local certified plumber. Plumbed to single point 1-1/4” IPT connection. Tempered warm water supply connection 20 GPM water supply is required.



Raised fiberglass deck with self draining containment basin, and 2” diameter drain outlet located on either the bottom or rear of unit.


Laboratory Applications Emergency Drench Shower Booth, same specs as above except with finished side panels. Cat No. 16604


Industrial Applications Emergency Drench Shower Booth, pull rod activated overhead drench shower & rear wall mounted eye/face wash. Cat No. 16601


Alarm & Light Combo

1. Combination Alarm Light & Horn - Audible warning sounds when system is activated by flow switch. Top mounted visual warning light when system is activated. 12 volt Cat No. 16680


Hand Held Face & Body Wash

Hand Held Face & Body Wash

Mounted on the front side-wall of the fume hood. Includes 8’ hose and surface escutcheon.
3/8” NPT. barrier free.

Cat. No. 93966

Multi Purpose Safety Stations
Constructed of 3/4" Polypro for durability, sanitation & corrosion resistance. Equipped with a pull rod activated shower and push handle eye / face wash for quick rinsing of eyes, face and body
Safety Station

1. Eye/Face Wash
2. Overhead Drench Shower
3. Safety Storage Cabinet

• All in only 5 or 6 sq. ft. of floor space!

• Constructed of 3/8” Polypro for durability, sanitation & corrosion resistance.

• Shipped completely assembled, ready to install.

• All plumbing is ready to connect.

• Fixtures meet ANSI Z358.1 standard for Safety Showers.

• Ideal for areas where persons may be exposed to potentially hazardous chemicals.

• The HEMCO Safety Station is equipped with a pull rod activated shower and push handle eye/face wash for quick rinsing of eyes, face and body.

• Towels and first aid supplies can be stored in the cabinet below.

• Safety Stations are fully assembled & ready for installation to water supply & drain.

• Supply 1.5” NPT, Drain 1.25” NPT.
Safety Station
Safety Station Specifications

“A” Width

A = 30” wide x 84” high x 24” deep. Unit is equipped with drench shower, eye/face wash &
storage cabinet
Cat. No. 78001

A = 36” wide x 84” high x 24” deep. Unit is equipped with drench shower, eye/face wash &
storage cabinet
Cat. No. 78002
Laboratory Safety Services
Hand held eyewash, hand held body wash, swing out eye wash, pull down eye wash
Hand Held Face Wash Hand Held Body Wash Swing out Eye Wash Pull Down Eye Wash

Hand held eye wash
Deck mounted next to sink.
Includes 8’ hose and surface
escutcheon. 3/8” NPT. Barrier free.
Cat. No. 93967

Hand held body wash - squeeze valve nozzle on 8’ coiled hose and bracket. Can be used to rinse all body parts while victim is sitting or lying down. Wall or hood mounted, 3/8 NPT, barrier free.
Cat No. 16005

Swing-out eye wash
Deck mounted next to sink. Activates
when pivoted. 1/2” NPT. Barrier free.
Cat. No. 16009

Pull-down eye wash
Recessed, wall mounted
(4” deep), pull-down eye wash
safety station. Stainless steel.
1/2” NPT. Barrier free.
Cat. No. 93968

Drench Showers
The Drench Shower provides a continuous stream of non-injurious water for 15 minutes or longer, after activation.
Drench Shower   •Shower head manufactured of UV resistant high visibility yellow ABS plastic.
•Shower head delivers a minimum of 20” diameter pattern to the target area 60”above standing level.
•Eye/Face wash heads with float off covers manufactured of UV resistant ABS plastic mounted in a high visibility ABS
• Combination shower and eye/face wash shall deliver 30 gpm @ 30/70 psi of flowing pressure from the shower head and 8.0 gpm @ 30/70 psi of flowing pressure from the eye/face wash.
Certified to ANSI Z358.1 shall deliver 30 gpm @ 30/70 psi of flowing pressure from the shower head and 8.0 gpm @ 30/70 psi of flowing pressure from the eye/face wash.

Construction:
• SUPPLY: 1 ¼” NPT
• WASTE: 1 ¼” NPT
• WEIGHT: 59 lbs (26.76 kgs)
• PIPING: Schedule 80 hot dip galvanized steel.
• BOWL: High visibility ABS plastic
• EYE/FACE WASH HEAD: ABS plastic dual stream heads with ABS plastic float off covers secured with stainless steel bead chains. Cat. No. 16605
• VALVES: Chrome plated bronze stay open ball valves with chrome plated balls, stainless steel valve stems, stainless steel push plate with actuation graphic (eye/face wash) and stainless steel pull rod assembly with actuation graphic (shower). Valve size 1”, eye face wash 1/2” strainer Tee option: 1/2” BCP, 16 mesh.

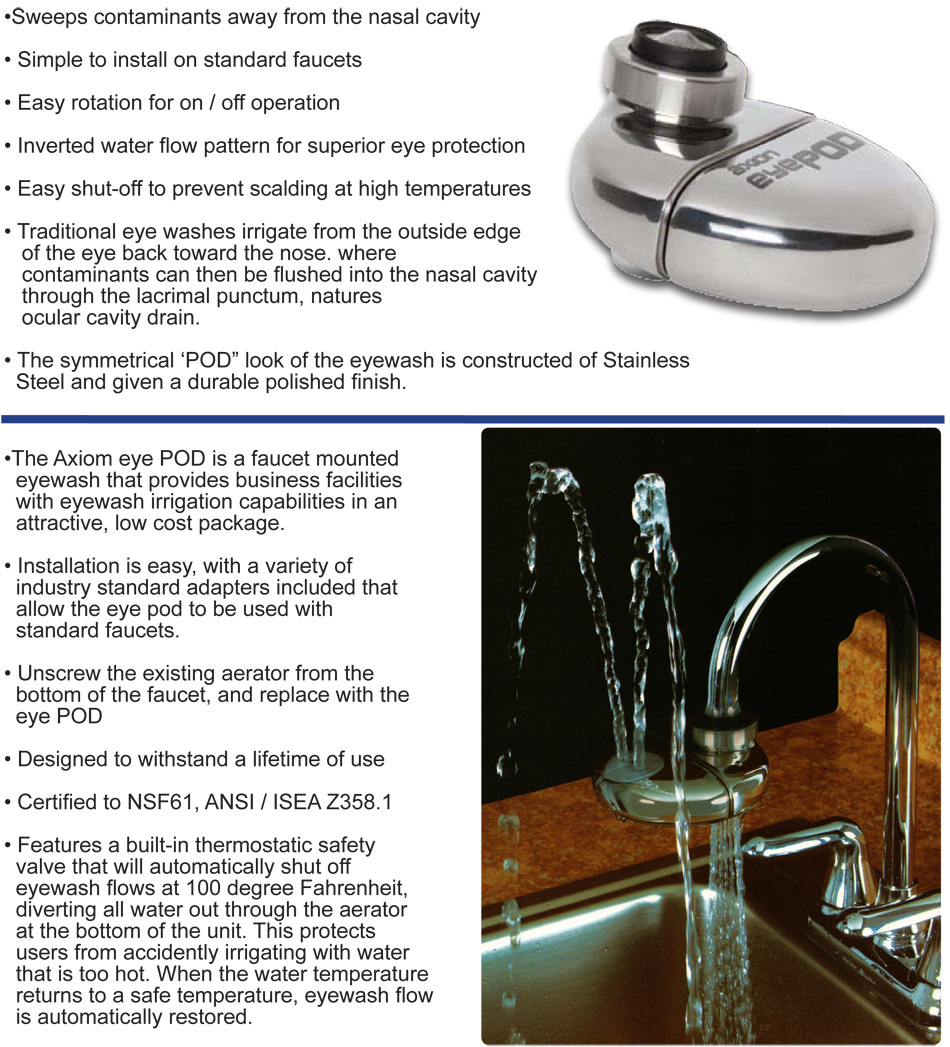

Faucet Mounted Eye Wash

Faucet mounted eyewash is constructed of stainless steel. Provides ease of installation on standard faucets. Inverted water flow pattern provides superior eye protection.

Eye Pod   The Faucet mounted eyewash is a faucet mounted eyewash that provides business facilities with eye wash irrigation capabilities in an attractive, low cost package.
• Installation is easy, with a variety of industry standard adapters included that allow the eye pod to be used with standard faucets.
• Unscrew the existing aerator from the bottom of the faucet, and replace with the faucet mounted eye wash
• Designed to withstand a lifetime of use
• Features a built-in thermostatic safety valve that will automatically shut off eyewash flows at 100 degree Fahrenheit,diverting all water out through the aerator at the bottom of the unit. This protects users from accidentally irrigating with water that is too hot. When the water temperature returns to a safe temperature, eyewash flow is automatically restored.
• Traditional eye washes irrigate from the outside edge of the eye back toward the nose. where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, natures ocular cavity drain.
• Certified to NSF61, ANSI / ISEA Z358.1
