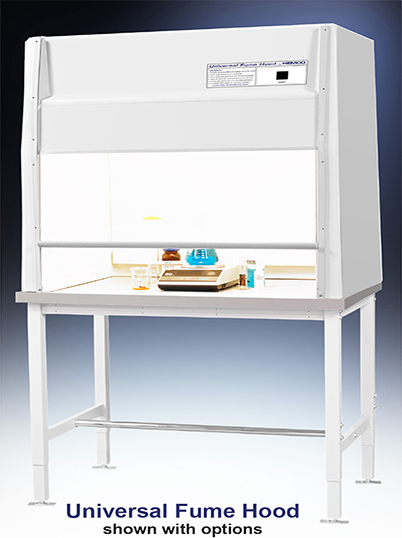

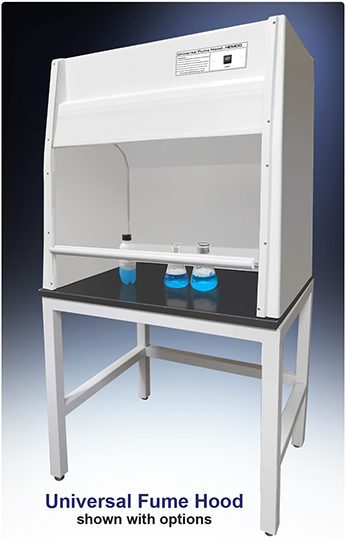

| Universal Fume Hoods |
The Universal Fume Hood is designed for light to medium duty fume removal, and offers such features as a sturdy dual wall construction, and a fully vertical sliding sash. |
|
|
• Ideal for Laboratories with limited space, offered in 24”, 30”, 36”, and 48” widths, the Universal is perfect for laboratories where
space is limited or when multiple hoods are needed. |
| |
• Durable One-Piece Fiberglass Construction, Completely molded
of durable chemical resistant and fire retardant fiberglass. The Hood interior features seamless, one piece construction with all coved corners for easy cleaning. Dual walls reduce sound and vibration. Varaflow baffle efficiently directs air through the fume chamber. |
| |
• Fully Adjustable Sliding Sash, the sash is made of 3/16” thick
shatterproof Plexiglas and is fully adjustable to allow easy access
into the fume chamber. “Easy-Touch” operation allows for precise
positioning. Vapor proof incandescent lighting provides a bright,
glare free work area. |
| |
• A full selection of accessories and components including work
surfaces, base cabinets, plumbing and electrical services are
available. Electrical components are installed but not wired and
must comply to electrical codes. |
| |
| • Shipped completely assembled and equipped, ready for operation. |
| |
| • Can be ducted if necessary to meet venting requirements. |
|
|
 |
|
 |
| Universal Fume Hoods |
| |
Fume Hood Width “A” |
| Specifications |
24” |
30” |
36” |
48” |
Universal Fume Hood with Vapor Proof light switch and 8’ 3 wire cord 115V. All electrical services are U.L and C.S.A. approved.
Shipped completely assembled. |
92021 |
93021 |
90321 |
90421 |
| Universal Fume Hood with vapor proof light and exhaust blower, same as above except equipped with built in 115V, 60Hz blower with polypro impeller wheel. |
92022 |
93022 |
90322 |
90422 |
| Universal Fume Hood with explosion proof light. (U.L. approved Class 1, Group D; Class II, Group E,F,and G.) Switch and wiring not included with hood, must be furnished by customer to comply with local codes. |
92023 |
93023 |
90323 |
90423 |
Universal Fume Hood with explosion proof light and explosion proof Blower, same as above except equipped with built in explosion proof 115/230V, 60Hz blower with polypro impeller wheel (U.L. approved Class 1.
Group D; Class II Group E, F, and G. |
92024 |
93024 |
90324 |
90424 |
| Accessories |
|
|
|
|
| Base Table |
52422 |
53022 |
53622 |
54822 |
| Phenolic Work Surface |
92028 |
93028 |
90328 |
90428 |
| Fume Hood Safety Panel, inserted under the sash to protect operator from hazards from within the fume chamber. |
92015 |
93015 |
90315 |
90415 |
|
| Universal Fume Hood Sizes |
| A |
24” |
30” |
36” |
48” |
| B |
18” |
24” |
27” |
39” |
| C |
20” |
20” |
20” |
20” |
| D |
36” |
36” |
36” |
36” |
| E |
23” |
23” |
23” |
23” |
| F |
21” |
21” |
21” |
21” |
| G |
6” |
6” |
6” |
8” |
|
|
|
