iso ul New UL UniFlow Fume Hoods

SE AireStream Laboratory Fume Hoods

High efficiency, full duty fume hood in 48”, 60”, 72” and 96” widths. UniFlow SE AireStream Laboratory fume hoods are designed for energy savings & maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. A constant volume low flow hood with Vector baffle system directs the air through the fume chamber to the bell shaped exhaust collar with minimal turbulence.

UniFlow SE AireStream
UniFlow Superstructure non-metallic construction, total chemical and corrosion resistance (NO RUST) for superior durability and long life. Interior fume chamber one piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation. 5 year warranty.

Vector AireStream Baffle System Features Vector Air Flow Slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet.

Access Panel removable to access ducting connections, plumbing & electrical services from a single point electrical box, 115V/60Hz AC operation. Energy efficient vapor proof LED light fixture with polished stainless steel reflectors, and light switch
on left column, all factory installed.

28" Vertical Sash Height vertical moving sash for loading & unloading of fume hood. Sash is counterbalanced and connected with coated stainless steel cables, 3/16” tempered safety glass with chemical resistant non-metallic PVC framing track and aerodynamic sash lift.

Full 35" Viewing Height for ease of access, unobstructed view of fume chamber, and working with tall apparatus and distillation grids. Ergonomic sash lift contoured for efficient air flow and ease of movement, standard equipment.

Angled Picture Frame Opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the Vector AireStream baffle system.

Air Flow Monitor Digital continuously monitors face velocity air flow. Meets ANSI and OSHA requirements. Optional equipment, Cat. No. 51403

U.L.1805 Classification defines requirements specific to Laboratory Fume Hoods & Cabinets • This Classification covers construction, materials, flammability and containment performance • UL 3101 electrical performance is tested using HIPOT testing, (high potential high voltage).
Exhaust Collar

Low Resistance Exhaust Collar Engineered to reduce exhaust air flow, static pressure and improve air flow volume & efficiency.

10" Diameter Exhaust Collar.................................Cat. No. 80101
12" Diameter Exhaust Collar.................................Cat. No. 80121

SE AireStream Hood Cat. No. 45621,shown with optional epoxy resin worksurface, acid storage cabinet, & fixtures.

Sashes
HORIZONTAL SLIDING
SASHES
Sash stops available. Max opening is 50%, (4) panels on (2) tracks, conveniently lift out for equipment set-up or cleaning.
COMBINATION VERTICAL MOVING FRAME with HORIZONTAL SLIDING SASHESOffers the advantages of both sash types. Horizontal openings offer energy savings while vertical option allows full access to the fume chamber. Frame is of type 304 stainless steel.
Click for SE Electronic Plan-A-Hood

SE AireStream Laboratory Fume Hoods

UniFlow SE AireStream Fume hoods

UniFlow SE AirStream Specifications & Ordering Info

(B) Depth 48" 60" 72" 96"
1. UniFlow SE AireStream CAV Fume Hood: Air By-pass low flow, constant air volume hood. Dual wall unitized construction, all non-metallic corrosion and fire resistant composite fiberglass construction. Vector AireStream baffle system and transition bell exhaust connection. Molded one-piece fume chamber with white glass-smooth surface with all coved corners. Vertical sash to be counter balanced 3/16” tempered safety glass with chemical resistant non-metallic PVC
framing track and aerodynamic sash lift. A sash stop is installed at the 1/2 open position. Vapor proof LED light fixture and control switch are wired to a single point junction box. 115V/60Hz, AC All electrical components are U.L. listed. Optional electrical services. Fume hood is U.L.1805 classified
30"

45421

45521

45621

45821

36" 45431 45531 45631 45831

2. UniFlow SE AireStream VAV Fume Hood: Same as #1 above except equipped with variable air volume VAV restricted by-pass feature in place of CAV by-pass feature. Ducting must be connected to optional VAV exhaust system controls.

30" 45422 45522 45622 45822
36"

45432

45532

45632

45832

3. UniFlow SE AireStream Fume Hood with Explosion-Proof Light: Same as #1 above except, equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115V/60Hz U.L. listed fixture is installed but not wired. Must be field wired to comply withcodes. Optional explosion proof switches, receptacles. 30" 45423 45523 45623 45823
36"

45433

45533

45633

45833

4. UniFlow SE AireStream Fume Hood: Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC Optional international electrical configuration, electrical switches, receptacles.

30" 45424 45524 45624 45824
36"

45434

45534

45634

45834

5. Horizontal Sliding Sash Option: Add suffix to number above
  45HS-4 45HS-5 45HS-6 45HS-8
6. Combination Sliding Sash Option: Add suffix to number above
  45CS-4 45CS-5 45CS-6 45CS-8
Click for Sales, Service, & Request for Quote

SE AireStream Laboratory Fume Hoods

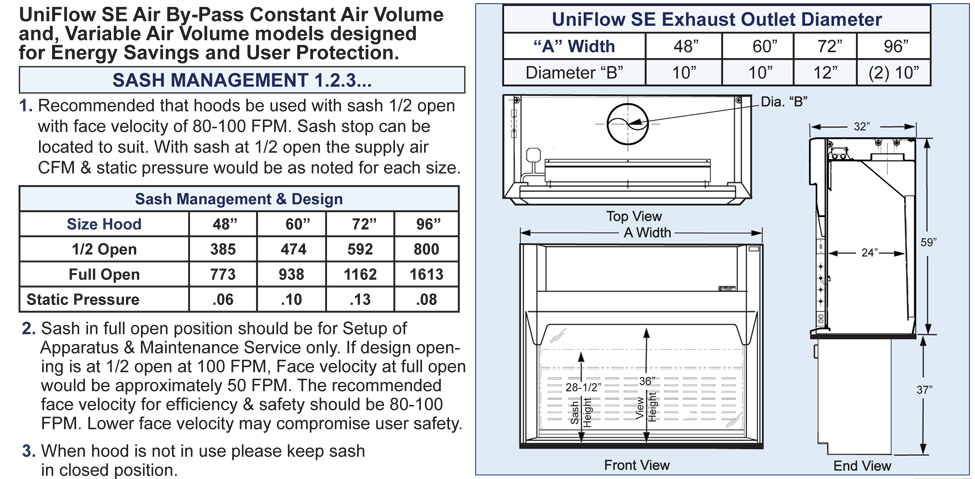

SE Family Drawing
