iso ul New UL UniFlow Fume Hoods

Clean Aire I Fume Hoods

The UniFlow Clean Aire I Hoods feature either a built-in HEPA or carbon filter system. Available in 48”, 60” and 72” models, these hoods can either vent to the outside or recirculate back to the workspace, depending on the type and volume of the contaminant.
Clean Aire I
Access Panel removable to access filter ducting connections, plumbing & electrical services from a single point electrical box, 115V/60Hz AC operation. Vapor proof
incandescent light fixture with light switch
on left column, all factory installed.

Air Flow Monitor continuously monitors face velocity airflow, comes standard with analog, digital available.
Meets ANSI and OSHA requirements.
Full 30” Viewing Height with 28.5” Sash opening height for ease of access and viewing tall apparatus setup. Sash is 3/16 thick tempered safety glass, vertical moving with
single point counter balanced, contoured sash handle for efficient air flow and ease of movement.
Sash Stop located at 1/2 open to reduce airflow 50%, standard equipment. Cat. No. 51651
VaraFlow Baffle System Maintains uniform airflow thru the VaraFlow Baffle System to bell shaped exhaust collar outlet.
Angled Picture Frame Opening Efficient air entry into fume chamber. Angle mounted service fixtures are easily viewed and user controlled.
Epoxy Work Surfaces Solid Epoxy Resin, dished to contain spillage. Color: Black U.L. tested & Certified to 1805 Classification.

SASH MANAGEMENT 1-2-3

1. Cut energy costs up to 50%. For improved lab efficiency air flow monitors check the fume hood face velocity & help to insure that the proper amount of room air changes per hour are maintained. The sash stop is designed for user protection and cfm reduction, allowing the sash to open to a maximum position of half open. With an average utility rate of $7.00 per cfm a typical annual savings on a 4’fume hood would be $2705.00 on a 6’ fume hood $4067.00.

2. Sash should only set to full open position for the set up of tall apparatus. Personal safety protection should be worn as recommended by the Lab Safety Officer.

3. When the fume hood is not in use return the sash to the closed position.



Fume Hood Face Velocity cfm

The recommended face velocity for efficiency & safety should be 80-100 fpm. Lower face velocity may compromise user safety.

Sash in full open position should be for setup of apparatus & maintenance service only. If opening is at 1/2 open at 100 fpm (feet per minute), face
velocity at full open would be approximately 50 fpm.

Clean Aire I Fume Hood Sash Management & Design
Size Hood 48" 60" 72"
Full open cfm 773 938 1162
1/2 open cfm 385 474 592

Clean Aire I Fume Hoods

The UniFlow Clean Aire I Hoods are available in 48", 60" and 72" models incorporated with filtration systems to control exhaust emissions. UniFlow Clean Aire Hoods can function as a Class 1 ductless hood for selected contaminates and procedures. Specifically, non hazardous low volume chemical fumes and noxious odors can be effectively absorbed by carbon filters or particulate collected by a HEPA filter.

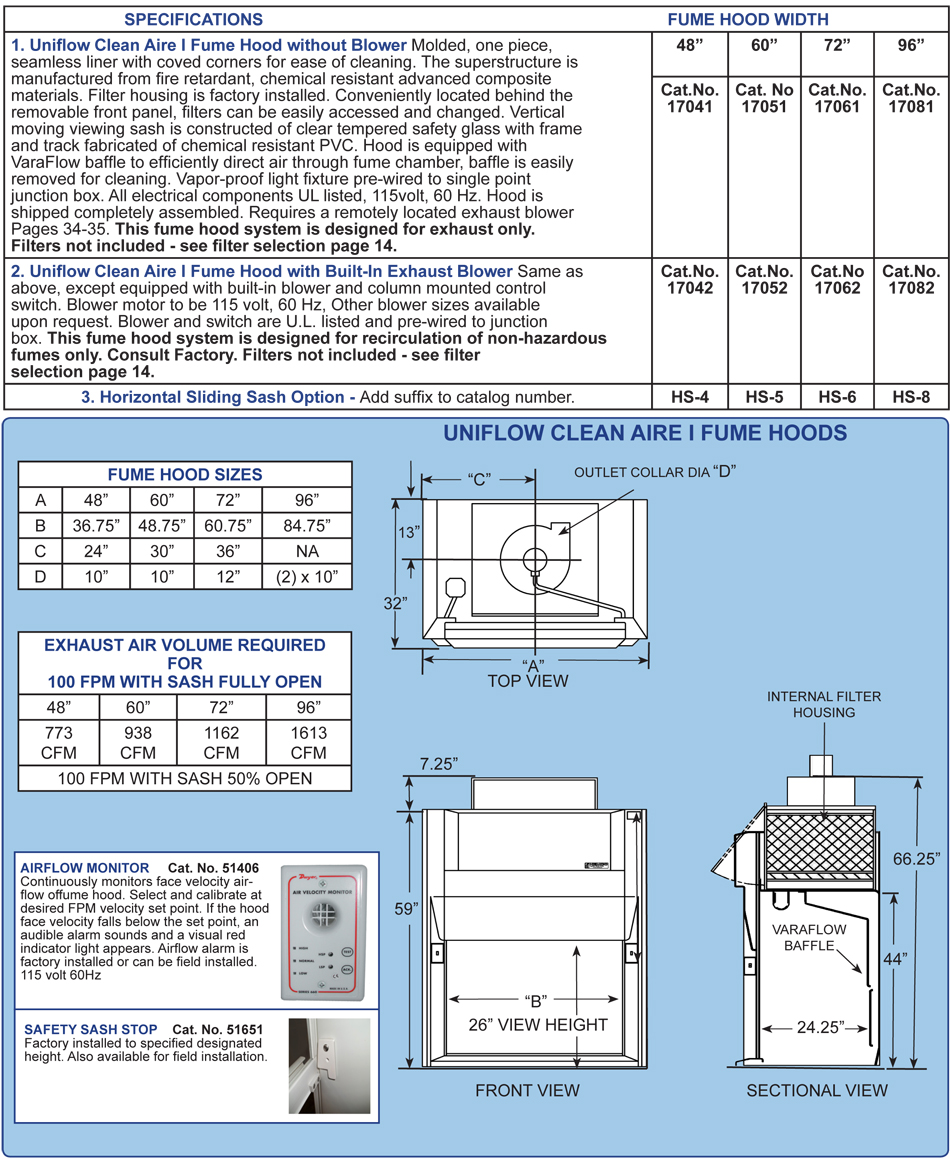

Specifications & Ordering Info (A) Width 48" 60" 72"
1. UniFlow Clean Aire I Fume Hood without Blower Molded, one piece, seamless liner with coved corners for ease of cleaning. The superstructure is manufactured from fire retardant, chemical resistant advanced composite materials. Filter housing is factory installed. Conveniently located behind the removable front panel, filters can be easily accessed and changed. Vertical moving viewing sash is constructed of clear tempered safety glass with frame and track fabricated of chemical resistant PVC. Hood is equipped with VaraFlow baffle to efficiently direct air through fume chamber, baffle is easily removed for cleaning. Vapor-proof light fixture pre-wired to single point junction box. All electrical components UL listed, 115volt, 60 Hz. Hood is shipped completely assembled. Requires a remotely located exhaust blower. This fume hood system is designed for exhaust only. Filters not included.

Model

17041

Model

17051

Model

17061

2. UniFlow Clean Aire I Fume Hood with Built-In Exhaust Blower Same as above, except equipped with built-in blower and column mounted control switch. Blower motor to be 115 volt, 60 Hz, Other blower sizes available upon request. Blower and switch are U.L. listed and pre-wired to junction box. This fume hood system is designed for recirculation of non-hazardous fumes only. Consult Factory. Filters not included.

Model

17042

Model

17052

Model

17062

Note: Consult Factory for Height of Hood with Built in Blower
3. Horizontal Sliding Sash Option - Add suffix to catalog number. HS-4 HS-5 HS-6
